High PSRR TPS74525PQWDRVRQ1 500mA Low Dropout Voltage Regulator WSON6 Positive Fixed
Product Description Of TPS74525PQWDRVRQ1
TPS74525PQWDRVRQ1 is a 500-mA ultra-low-dropout regulator (LDO) with power-good functionality. TPS74525PQWDRVRQ1 consumes low quiescent current and provides fast line and load transient performance.
TPS74525PQWDRVRQ1 is a flexible device for post-regulation by supporting an input voltage range from 1.5 V to 6.0 V and an externally adjustable output range of 0.55 V to 5.5 V. The device also features fixed output voltages for powering common voltage rails.
TPS74525PQWDRVRQ1 has a power-good (PG) output that monitors the voltage at the feedback pin to indicate the status of the output voltage. The EN input and PG output can be used for sequencing multiple power supplies in the system.
Specification Of TPS74525PQWDRVRQ1
| Part Number | TPS74525PQWDRVRQ1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | |
| Voltage - Input (Max) | |
| Voltage - Output (Min/Fixed) | |
| Voltage Dropout (Max) | |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | |
| PSRR | 57dB ~ 35dB (1kHz ~ 1MHz) |
| Control Features | |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
Features Of TPS74525PQWDRVRQ1
- Input voltage range: 1.5 V to 6.0 V
- Output voltage range - Fixed option: 0.65 V to 5.0 V
- Output voltage range - Adjustable option: 0.55 V to 5.5 V
- High PSRR: 45 dB at 100 kHz
- Output accuracy: ±0.85% (25°C), ±1.5% maximum
- Power-good output options:
- Open-drain and push-pull
- Ultra-low dropout: 160 mV (max) at 500 mA (3.3 VOUT)
- Stable with a 1-µF or larger capacitor
- Low IQ: 25 μA (typical), 1.5 μA (shutdown)
- Active output discharge
Applications Of TPS74525PQWDRVRQ1
- Automotive head units
- Front and rear cameras
- Automotive cluster displays
- Telematics control units
- Medium, short range radar

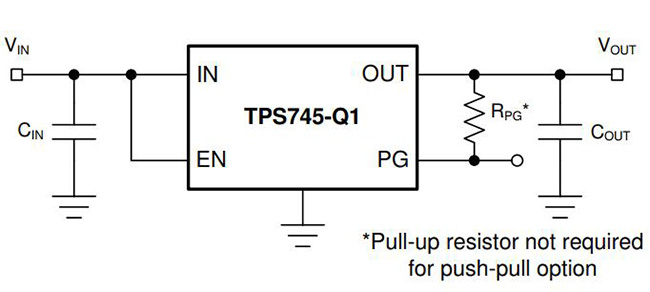

Typical Application Of TPS74525PQWDRVRQ1(Fixed Voltage Version)
Typical Application Of TPS74525PQWDRVRQ1(Adjustable Voltage Version)

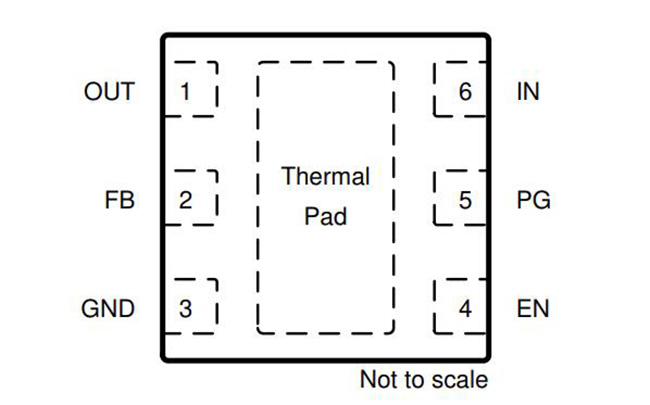

Pin Configuration Of TPS74525PQWDRVRQ1
