Power Switch IC VNI4140KTR 700mA Power Distribution Quad Hi Side Smart Power SS Relay
Product Description Of VNI4140KTR
The VNI4140KTR is a monolithic device made using VIPower technology, intended to drive four independent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shutdown protects the chip from overtemperature and short-circuit.
Specification Of VNI4140KTR
| Product Status | |
| Switch Type | General Purpose |
| Number of Outputs | |
| Ratio - Input:Output | 1:1 |
| Output Configuration | |
| Output Type | N-Channel |
| Interface | |
| Voltage - Load | |
| Voltage - Supply (Vcc/Vdd) | |
| Current - Output (Max) | |
| Rds On (Typ) | |
| Input Type | |
| Features | |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | |
Features Of VNI4140KTR
- Output current: 0.7 A per channel
- Shorted load protections
- Junction overtemperature protection
- Case overtemperature protection for thermal independence of the channels
- Thermal case shutdown restart not simultaneous for the various channels
- Protection against loss of ground
- Current limitation
- Undervoltage shutdown
- Open drain diagnostic outputs
- 3.3 V CMOS/TTL compatible inputs
- Fast demagnetization of inductive loads
- Conforms to IEC 61131-2
- ESD according to IEC 61000-4-2 up to +/-25 kV

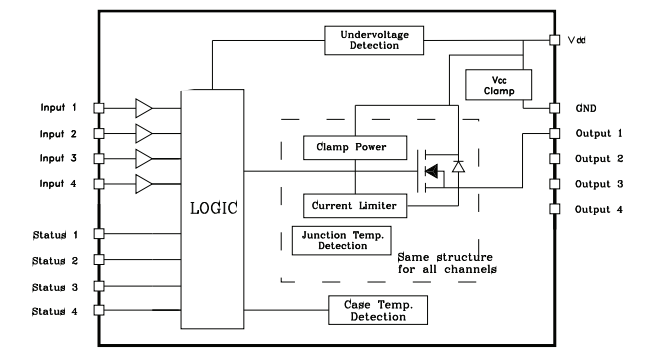

Block Diagram Of VNI4140KTR

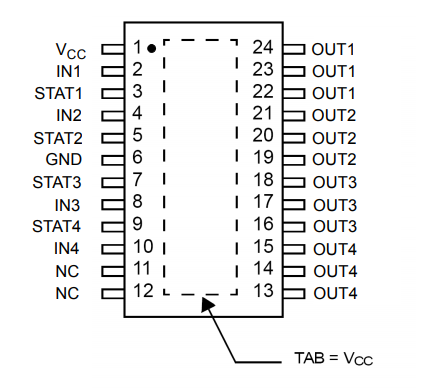

Pin Connection Of VNI4140KTR
